EIA RS-310C 19" Rackmount Standard

Construction:

Heavy Duty Cold Rolled Electroplated Steel

Color:

Black (Standard)

System Boards:

Pentium 4, Dual Xeon, AMD 64, Dual Opteron

Motherboard Size:

Support ATX M/B (Max. to 12 " x 10.5")

Drive Bays:

1 x 5.25” Open Bay, 3 x hot-swappable 3.5" HDD tray/carrier

Drive Interface:

SATA2. (U320 SCSI/SCA, SAS Optional)

Power Supply:

(Rear Chassis Installation) Single or Redundant PS2 size (Optional) Max Depth 300mm

Cooling Units:

2x 92mm = 51CFM ea & 1x60mm=23.5CFM and 2x (60mm = 23.5CFM ea. Optional) Heavy Duty Ball Bearing Fans

Expansion Slot:

7 x Vertical Full Length/Height PCI Slots

Connector Port (front):

2x USB Ports

Screen:

7.0" LCD (800x 480) with 5 button control and rear input

Indicators:

LEDs for Power, HDD Activity

Buttons:

Power On/Off Momentary Rocker Switch

Crossbar:

PCI Spanner Bar

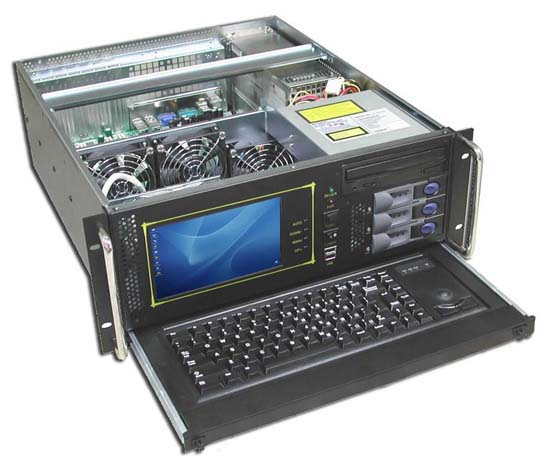

Keyboard:

84 key “Cherry” Keyboard that slides from the bottom of the chassis (rear connector)

Mouse:

Logitech Trackball (rear connector)

Air Filter:

Inside Front Door (Washable)

Dimensions:

(W x H x D):

483 x 178 x 490mm (19" x 7" x 20.5")

Weight:

21 Kgs//46.4lbs

Cu. ft.:

5.0

Carton Size:

24”x13.4”x26”

Humidity:

5% - 95% Non-condensing

Product Applications:

Broadcasting; Post Production
